Helmat Terracotta Jali
Helmat Terracotta Jali is a decorative clay jali designed for building elevations, facades, balconies, partitions and architectural screens.
✦ KEY ARCHITECTURAL HIGHLIGHTS
- Thermal Insulation: Clay natural heat-resistant hai, indoor temperature cooler rakhta hai
- Natural Ventilation & Daylight: Breezeway effect se hawa aur light ka seamless flow
- Eco-Friendly & Sustainable: 100% natural red clay material, non-toxic aur recyclable
- Low Maintenance & Weatherproof: Rain, UV light aur extreme heat me color fade nahi hota
- Timeless Aesthetic: Modern aur traditional dono designs par rustic clay finish look
⚡ LIVE ESTIMATORProject Quantity & Freight Weight
Enter elevation wall area to calculate exact piece count & logistics tonnageSQ. FT.
Pieces Required
225pcs
Est. Weight
506 kg (0.51 MT)
ARCHITECTURAL SPECIFICATION & OVERVIEW

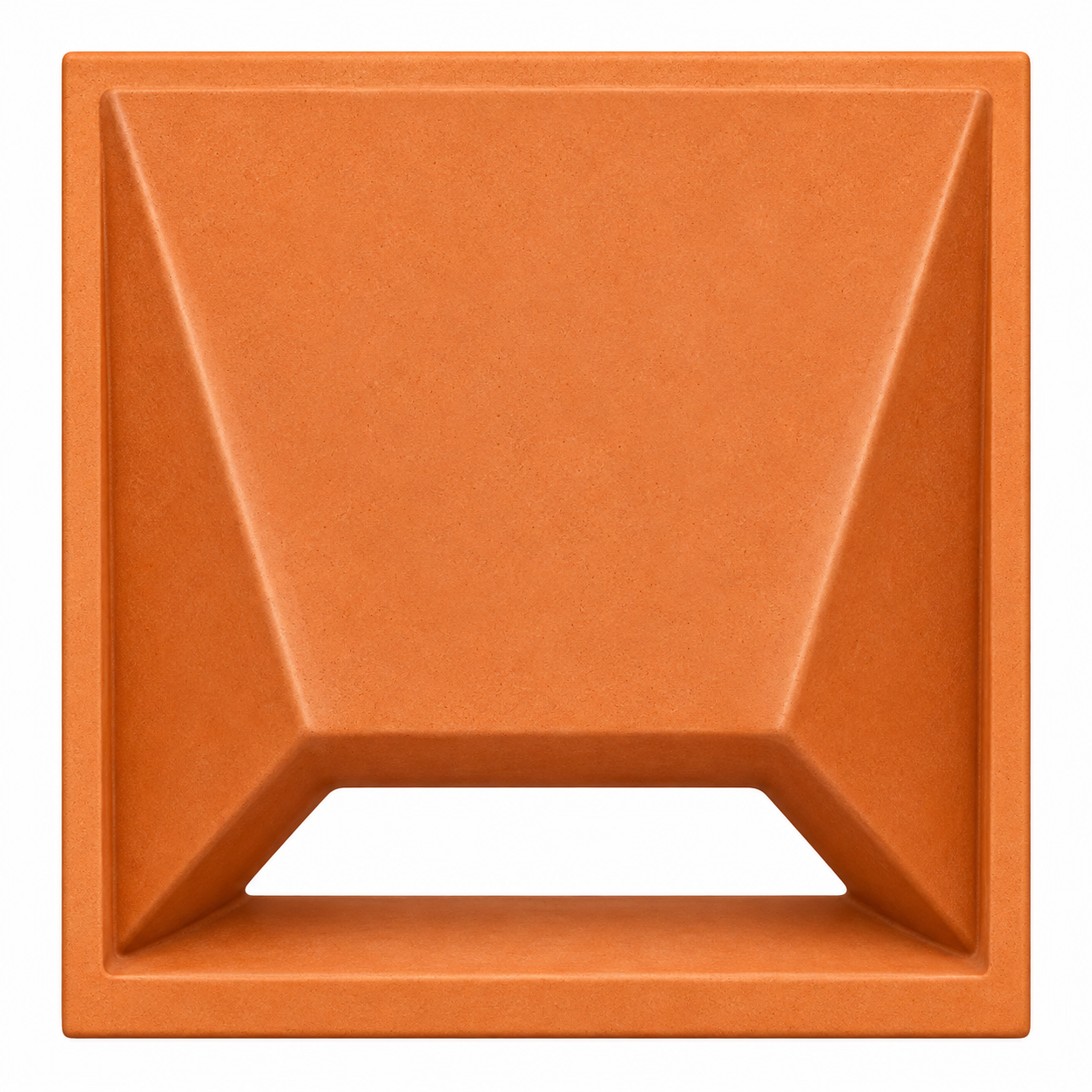

About Helmat Terracotta Jali
Helmat Terracotta Jali is a decorative clay jali designed for building elevations, facades, balconies, partitions and architectural screens.
Enterprise GradeEngineered for large-scale architectural projects
Climate ResilientTested for Indian climate extremes — heat, rain, humidity
Factory PrecisionBatch-controlled production with anti-efflorescence mix design
Sustainable MaterialEco-conscious production with minimal carbon footprint
Helmat Terracotta Jali — Technical Specifications
Technical Specifications & Dimensional Matrix
Available Sizes & Dimensions
8" × 8" × 2.5"
Colours & Surface Finishes
Natural Terracotta Clay Red
Material Composition
Natural clay & fired
Minimum Order Quantity (MOQ)
100 pieces
Helmat Terracotta Jali — Applications and Usage Areas
Primary Applications
- Luxury Residential Villas, Modern Bungalows & Independent Houses, Commercial Office Buildings, Heritage & Eco-Resorts, Boutique Hotels & Restaurants, Institutional & University Campuses, Apartment Exterior Balconies, Farmhouses & Landscaped Parks, Cultural & Community Centers, High-End Retail Showrooms
Usage Areas & Project Types
- Main Facade Elevation, Exterior Elevation Wall Cladding, Boundary Wall Panels, Balcony Railing Partition, Courtyard & Portico Screens, Staircase Wall Panels, Sunshade & Louvre Panels, Garden Landscaping Feature Walls, Rooftop Patio Screens, Parking & Boundary Enclosure
Helmat Terracotta Jali — Advantages and Limitations
PERFORMANCE MATRIX
Key Advantages
- Thermal Insulation: Clay natural heat-resistant hai, indoor temperature cooler rakhta hai. Natural Ventilation & Daylight: Breezeway effect se hawa aur light ka seamless flow. Eco-Friendly & Sustainable: 100% natural red clay material, non-toxic aur recyclable. Low Maintenance & Weatherproof: Rain, UV light aur extreme heat me color fade nahi hota. Timeless Aesthetic: Modern aur traditional dono designs par rustic clay finish look.
ALL-WEATHER CERTIFIED
Indian Climate Suitability
Heavy Monsoon Proof 50°C+ UV Resilient Through-Body Color
Produced for Indian exterior exposure — heavy monsoon rainfall, intense summer temperatures reaching the high 40s°C, and severe UV radiation. Colour is through-body rather than surface-applied, ensuring weathering presents as an elegant architectural patina without coating delamination.
STRUCTURAL SPECIFICATION
Limitations & Engineering Limits
Designed specifically as non-load bearing facade cladding, solar screen louvers, or architectural partition masonry. Free-standing perimeter walls exceeding 3.0 meters in total height mandate structural steel or concrete column anchoring ties for wind load stability.
Mandatory: Use 6mm dowel ties every 3rd course on exterior screens.
Helmat Terracotta Jali — Installation, Care and Maintenance
SITE EXECUTION MANUAL
Installation Guidance
01
Surface Preparation
Thoroughly clean and level the concrete base beam, lintel, or floor slab prior to first course alignment.
02
Mortar / Adhesive Specification
Use polymer-modified tile adhesive or 1:3 cement-sand mortar matrix maintaining a uniform 8-10mm joint spacing.
03
Alignment & Structural Reinforcement
Check vertical plumb with spirit level. Embed 6mm MS/SS dowel rods every 3rd course into adjacent structural columns for rigid anchoring.
FACILITY MANAGEMENT PROTOCOL
Care & Maintenance
Routine Surface Cleaning
Periodic low-pressure clean water spray is sufficient to remove ambient dust and environmental debris.
Hydrophobic Sealer Protection
Apply a transparent breathable silicone / fluoropolymer sealer every 5 years for enhanced exterior facade stain immunity.
Efflorescence Prevention
Our engineered mix design incorporates anti-efflorescence chemical complexes to neutralize surface salting.
Helmat Terracotta Jali — Pricing, Packaging and Dispatch
COMMERCIAL MATRIX
Price Factors & Minimum Order Quantity
Minimum Order Quantity (MOQ)
100 pieces
Final ex-factory project pricing is calculated based on total quantity volume, custom sizing dimensions, selected colour finish, and transit distance to your site PIN code. Institutional and commercial bulk orders qualify for Tier-1 direct factory pricing.
GST Invoice Included Volume Tier Discounts Direct Factory Rates
DISPATCH & LOGISTICS
Packaging & All-India Dispatch
Packaging Standard
Strapped heavy-duty ISPM-15 heat-treated wooden pallets with corrugated edge protectors, corner shock cushions, and heavy-gauge weatherproof shrink wrapping for 100% transit zero-damage safety.
Dispatch Schedule
Standard stock architectural products are dispatched within 48-72 hours. Bespoke CNC moulds and custom colour batch production dispatched within 7-10 working days via dedicated freight carriers across India.
Helmat Terracotta Jali — Frequently Asked Questions
ARCHITECTURAL KNOWLEDGE BASE
Frequently Asked Questions
How is Helmat Terracotta Jali delivered to site safely?
Products are securely palletized with corner impact protection, strapped with heavy-gauge PET banding, shrink-wrapped, and shipped directly to your project site via dedicated container logistics with door delivery support.
Can custom colors, textures, or sizes be fabricated for landmark developments?
Yes! Kamad Infratech specializes in bespoke CNC moulds, custom geometric patterns, and pantone-matched terracotta & precast pigments for architectural projects exceeding 1,000 sq.ft.
What is the structural performance warranty and material lifespan?
Our precast concrete and kiln-fired terracotta elements have an engineered design life of 50+ years. Every batch is supplied with certified lab test reports verifying compressive strength, water absorption, and zero manufacturing defects.
